本表額定載荷所用鋼絲繩規格為：Φ6 ～Φ60 采用 6x37（b）-1670；
鋼絲繩規格不同，其額定載荷不同，可根據客戶要求的鋼絲繩來計算額定載荷；
索具的破斷拉力為額定載荷的 5 倍

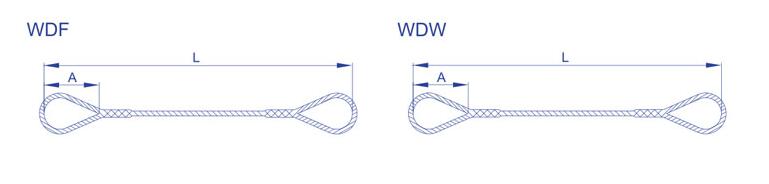

| 產品型號 | 鋼絲繩直徑 (mm) | 額定載荷 | 近似套長A (mm) | ||
| 麻芯 | 鋼芯 | 麻芯(kn) | 鋼芯(kn) | ||
| WDF06 | WDW06 | 6 | 2.7 | 2.9 | 180 |
| WDF07 | WDW07 | 7 | 3.6 | 3.9 | 190 |
| WDF08 | WDW08 | 8 | 4.7 | 5.1 | 210 |
| WDF09 | WDW09 | 9 | 6 | 6.5 | 230 |
| WDF10 | WDW10 | 10 | 7.4 | 8 | 230 |
| WDF11 | WDW11 | 11 | 8.9 | 9.7 | 250 |
| WDF12 | WDW12 | 12 | 11 | 11.5 | 260 |
| WDF13 | WDW13 | 13 | 12 | 14 | 260 |
| WDF14 | WDW14 | 14 | 14 | 16 | 280 |
| WDF16 | WDW16 | 16 | 19 | 20 | 320 |
| WDF18 | WDW18 | 18 | 24 | 26 | 360 |
| WDF20 | WDW20 | 20 | 30 | 32 | 400 |
| WDF22 | WDW22 | 22 | 36 | 39 | 440 |
| WDF24 | WDW24 | 24 | 42 | 46 | 480 |
| WDF26 | WDW26 | 26 | 50 | 54 | 520 |
| WDF28 | WDW28 | 28 | 58 | 63 | 560 |
| WDF30 | WDW30 | 30 | 66 | 72 | 600 |
| WDF32 | WDW32 | 32 | 76 | 82 | 640 |
| WDF34 | WDW34 | 34 | 85 | 92 | 680 |
| WDF36 | WDW36 | 36 | 96 | 104 | 720 |
| WDF38 | WDW38 | 38 | 106 | 115 | 760 |
| WDF40 | WDW40 | 40 | 118 | 128 | 800 |
| WDF42 | WDW42 | 42 | 130 | 141 | 840 |
| WDF44 | WDW44 | 44 | 143 | 155 | 880 |
| WDF46 | WDW46 | 46 | 156 | 169 | 920 |
| WDF48 | WDW48 | 48 | 170 | 183 | 960 |
| WDF50 | WDW50 | 50 | 185 | 200 | 1000 |
| WDF52 | WDW52 | 52 | 200 | 216 | 1040 |
| WDF54 | WDW54 | 54 | 215 | 233 | 1080 |
| WDF56 | WDW56 | 56 | 231 | 251 | 1120 |
| WDF58 | WDW58 | 58 | 248 | 269 | 1160 |
| WDF60 | WDW60 | 60 | 266 | 287 | 1200 |
| WDF62 | WDW62 | 62 | 241 | 286 | 1240 |
| WDF64 | WDW64 | 64 | 257 | 304 | 1280 |
| WDF66 | WDW66 | 66 | 274 | 324 | 1320 |
| WDF68 | WDW68 | 68 | 291 | 344 | 1360 |
| WDF70 | WDW70 | 70 | 308 | 365 | 1400 |
| WDF72 | WDW72 | 72 | 326 | 386 | 1440 |
| WDF74 | WDW74 | 74 | 344 | 407 | 1480 |
| WDF76 | WDW76 | 76 | 363 | 430 | 1520 |
| WDF78 | WDW78 | 78 | 383 | 453 | 1560 |
| WDF80 | WDW80 | 80 | 402 | 476 | 1600 |
| WDF82 | WDW82 | 82 | 423 | 500 | 1640 |
| WDF84 | WDW84 | 84 | 444 | 525 | 1680 |
| WDF86 | WDW86 | 86 | 465 | 550 | 1720 |
| WDF88 | WDW88 | 88 | 487 | 576 | 1760 |
| WDF90 | WDW90 | 90 | 509 | 603 | 1800 |
| WDF92 | WDW92 | 92 | 532 | 630 | 1840 |
| WDF94 | WDW94 | 94 | 556 | 657 | 1880 |
| WDF96 | WDW96 | 96 | 579 | 686 | 1920 |
| WDF98 | WDW98 | 98 | 604 | 714 | 1960 |
| WDF100 | WDW100 | 100 | 629 | 744 | 2000 |
| WDF102 | WDW102 | 102 | 654 | 774 | 2040 |
| WDF104 | WDW104 | 104 | 680 | 805 | 2080 |
| WDF106 | WDW106 | 106 | 707 | 836 | 2120 |
| WDF108 | WDW108 | 108 | 733 | 868 | 2160 |
| WDF110 | WDW110 | 110 | 761 | 900 | 2200 |
| WDF112 | WDW112 | 112 | 789 | 933 | 2240 |
| WDF114 | WDW114 | 114 | 817 | 967 | 2280 |
| WDF116 | WDW116 | 116 | 846 | 1001 | 2320 |
| WDF118 | WDW118 | 118 | 876 | 1036 | 2360 |
| WDF120 | WDW120 | 120 | 905 | 1071 | 2400 |
| WDF122 | WDW122 | 122 | 1006 | 1252 | 2440 |
| WDF124 | WDW124 | 124 | 1039 | 1294 | 2480 |
| WDF126 | WDW126 | 126 | 1074 | 1336 | 2520 |
| WDF128 | WDW128 | 128 | 1108 | 1378 | 2560 |
| WDF130 | WDW130 | 130 | 1143 | 1422 | 2600 |
| WDF132 | WDW132 | 132 | 1179 | 1467 | 2640 |
| WDF134 | WDW134 | 134 | 1215 | 1515 | 2680 |
| WDF136 | WDW136 | 136 | 1251 | 1560 | 2720 |
| WDF138 | WDW138 | 138 | 1288 | 1605 | 2760 |
| WDF140 | WDW140 | 140 | 1326 | 1650 | 2800 |
| WDF142 | WDW142 | 142 | 1363 | 1695 | 2840 |
| WDF144 | WDW144 | 144 | 1402 | 1740 | 2880 |
| WDF146 | WDW146 | 146 | 1441 | 1800 | 2920 |
| WDF148 | WDW148 | 148 | 1482 | 1845 | 2960 |
| WDF150 | WDW150 | 150 | 1515 | 1890 | 3000 |
| WDF152 | WDW152 | 152 | 1560 | 1950 | 3040 |
| WDF154 | WDW154 | 154 | 1605 | 1995 | 3080 |
| WDF156 | WDW156 | 156 | 1650 | 2055 | 3120 |
| WDF158 | WDW158 | 158 | 1695 | 2100 | 3160 |
| WDF160 | WDW160 | 160 | 1725 | 2160 | 3200 |
| WDF162 | WDW162 | 162 | 1770 | 2205 | 3240 |
| WDF164 | WDW164 | 164 | 1815 | 2265 | 3280 |
| WDF166 | WDW166 | 166 | 1860 | 2325 | 3320 |
| WDF168 | WDW168 | 168 | 1905 | 2370 | 3360 |
| WDF170 | WDW170 | 170 | 1950 | 2430 | 3400 |
| WDF172 | WDW172 | 172 | 1995 | 2490 | 3440 |
| WDF174 | WDW174 | 174 | 2055 | 2550 | 3480 |
| WDF176 | WDW176 | 176 | 2100 | 2610 | 3520 |
| WDF178 | WDW178 | 178 | 2145 | 2670 | 3560 |
| WDF180 | WDW180 | 180 | 2190 | 2730 | 3600 |
| WDF182 | WDW182 | 182 | 2235 | 2790 | 3640 |
| WDF184 | WDW184 | 184 | 2295 | 2850 | 3680 |
| WDF186 | WDW186 | 186 | 2340 | 2910 | 3720 |
| WDF188 | WDW188 | 188 | 2385 | 2970 | 3760 |
| WDF190 | WDW190 | 190 | 2445 | 3045 | 3800 |
 |
